R DT data.table Join

This is part of PML notes. HDD: r_data_table_start

Prepare Data #

library(dplyr)
library(readr)
library(data.table)
hero = "
name,       alignment, gender,   publisher
Magneto,    bad,       male,     MarvelDuplicate
Storm,      good,      female,   MarvelDuplicate
Batman,     good,      male,     DC
Joker,      bad,       male,     DC
Catwoman,   bad,       female,   DC
Hellboy,    good,      male,     Dark Horse Comics
"
hero = read_csv(hero, trim_ws = TRUE, skip = 1)
hero = data.table(hero)

publisher = "
publisher,   yr_founded
DC,              1934
MarvelDuplicate, 1939
MarvelDuplicate, 8888
Image,           1992
"
publisher = read_csv(publisher, trim_ws = TRUE, skip = 1)
publisher = data.table(publisher)

For all the join commands, if a key is set for both dt, then on = 'key_col_name' can be elided.

WARN: row orders are not guaranteed

Left-Join & Inner-Join #

left-join will keep all left-side table rows, including no-matched rows

by default, nomatch cells := NA

hero[publisher, on = "publisher"]

nomatch = 0 means delete no-matched rows (becomes inner-join)

hero[publisher, nomatch = 0, on = "publisher"]

Right-Join & Inner, all = TRUE #

right-join will keep all right-side table rows, unfortunately, we have to swap two data.table’s to make a right-join (using left-join format)

publisher[hero, on = "publisher"]

nomatch = 0 means delete no-matched rows (becomes inner-join again, with row & col orders may diff from the left-join’s inner-join)

Outer-/Full-Join & Inner-Join #

Outer-(or full-) join will keep both tables content, with extra NA’s

we need function merge; param is by = 'key_name', NOT on.

merge(hero, publisher, by = "publisher", all = TRUE)

if not all content is kept, it becomes inner-join, again.

merge(hero, publisher, by = "publisher")

Anti-Join #

Give the rows that only exist on left-table

hero[!publisher, on = "publisher"]

publisher[!hero, on = "publisher"]

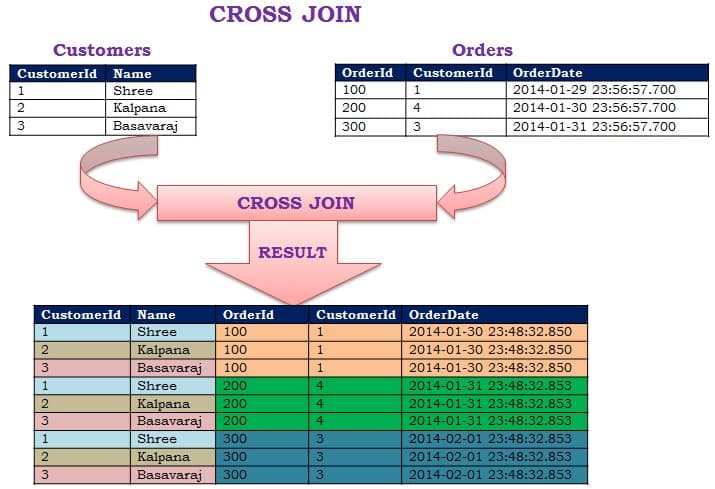

Cross-Join #

Give the multiplied rows like matrix-multiplication.

nrow(new_table) := nrow(left_table) * nrow(right_table)

ref

Semi-Join (Only Keep Half Side Content) #

index = unique(hero[publisher, on = "publisher", which=TRUE, allow.cartesian=TRUE])
hero[index]

you can add nomatch = 0

Self-Join #

Self-join has not been implemented for DT yet. A for loop or some other methods are necessary.

See self-join definition here.

See examples & solutions for DT here

ref:

data source, which is modified here.

semi-Join

SQL Join, chart explained
