Data Structure Alignment 数据结构对齐 #

x86-64 architecture #

Overall rule: any data structure/element should be accessed by CPU with minimum CPU cycles. A 32bit CPU can access 4Bytes in one cycle, while a 64bit one can access 8Bytes. When a memory access is not aligned, it is said to be misaligned (wiki).
Thus, there are two practical rules for us to understand compiler’s padding:

Rule 1: any basic data structure/element/variable should be aligned so that their beginning address is divisible (任何变量的开始地址都能被自己的大小整除,即:当被访问的数据长度为 n 字节时,数据地址为 n 字节对齐。).

e.g. int 开始地址必须是 4 的倍数(如果 sizeof(int)==4);short 的开始地址必须是 2 的倍数;char 开始地址必须是 1 的倍数(任意地址);double 开始地址是 8 的倍数。

Rule 2: (actually extended from 1) considering array of struct, the beginning address of a struct should be an integer multiple of the biggest item in the structure (结构体的开始地址能够被结构体内最大的元素的大小整除,才能保证此结构体的数组中的每个结构体的元素都是对齐的).


struct student {
    char a;
    int b;
    char c;
}; // 12 Bytes

ref: 12 Bytes: javatpoint, (bak)
ref: more examples: geeksforgeeks
ref: sizes of data in different OS’s and architecture

other structure or cpu #

It depends and varies.

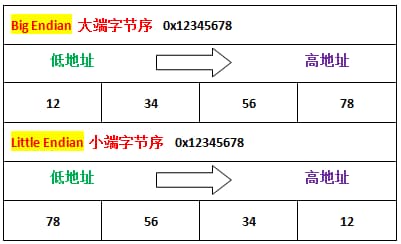

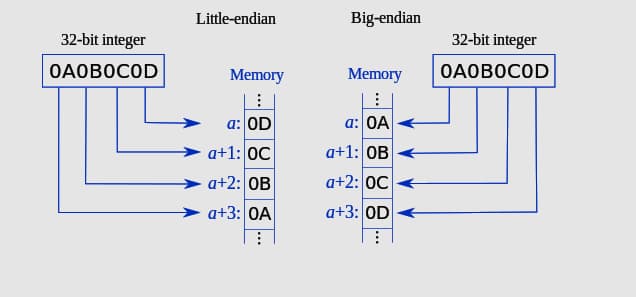

Little Endian vs. Big Endian #

Little endian: bytes that have less influence on the entire value are stored in low addresses.


When a host reads to transfer, low addresses are firstly read/accessed. Thus network protocals defines a rule when transfering data (which may cross platforms), therefore, hton, ntoh.

Tip: x86 and ARM are Little Endian, java and most network protocals are Big Endian (thus Big Endian is also called Network Endian).

Ref: hackday, CSDN.
